Steakjunky's TLR 22 Racebuggy buildup!

Beitrag  Steakjunky am Do Apr 21, 2011 1:05 am

Hey guys, i just recieved a call from Sephy that my TLR 22 just arrived at my local main dealer Nitro4u. Rock Smilie

In this thread i will post the complete build of this awesome 2wd buggy, with some tips that i've seen on different pages in the internet.

Things i will use in this buggy:
Nosram Pearl Evo ESC
Nosram Pure Evo 8.5T
Savöx Servo
2s Yountong 5000mAh Lipo

This rig will be controlled with my good old Sanwa M11 + 2,4 Ghz module!

So stay tuned for a nice buildup thread Wink I will build it over the weekend, write everything down and post it on Tuesday next week, because I'm in lower Austria during easter! Schlag Smilie
gretings Steakjunky!

_________________
Gib Veganern keine Chance! EAT MEAT!  lol!

Member of the MBG20-Group

Steakjunky
Admin
Admin

Anzahl der Beiträge : 885
Anmeldedatum : 29.09.09
Alter : 27
Ort : Wien

Nach oben Nach unten

Re: Steakjunky's TLR 22 Racebuggy buildup!

Beitrag  Ghost 22 am Do Apr 21, 2011 3:22 am

cheers

I think your 22 will be amazing lol! Schlag Smilie



_________________
Cheers Max


Chevy Stepside 1980 US Army
Ford F100 Hotrod
Freightliner M2 112 *in progress*
Scania R-Series Holztransporter 6x4
Scania T-142 Kipper 4x4 mit Tieflader
Ural 375D 6x6 Military
Tatra 815 6x6x4 Trial Truck
Mercedes SK 4x4 Trial Truck
...

Ghost 22
Admin
Admin

Anzahl der Beiträge : 1366
Anmeldedatum : 26.09.09
Alter : 25
Ort : Vienna

http://www.morethanbike.at

Nach oben Nach unten

Re: Steakjunky's TLR 22 Racebuggy buildup!

Beitrag  rocketrob am Do Apr 21, 2011 8:29 am

Well, that explains the delay - ordering it from a nitro-dealer (Nitro4u) lol!

Do you think you've got the talent to be able to assemble it, or follow the instruction pictures? Schlag Smilie


Just joking my friend, enjoy - and look forward to your end result. Top Smilie

rocketrob
Trialer
Trialer

Anzahl der Beiträge : 82
Anmeldedatum : 27.11.10
Ort : USA

Nach oben Nach unten

Re: Steakjunky's TLR 22 Racebuggy buildup!

Beitrag  Steakjunky am Do Apr 21, 2011 12:38 pm

rocketrob schrieb:Well, that explains the delay - ordering it from a nitro-dealer (Nitro4u) lol!

Yeah, i know, i'm not quiet sure, how he gets all the electric stuff.... Hmmm strange... seems like magic! Schlag Smilie

rocketrob schrieb:Do you think you've got the talent to be able to assemble it, or follow the instruction pictures? Schlag Smilie

Phuuuu normaly these cars are for people who are 14+ years old, so i think i can handle it, but i have to wear all the safty equipement like gloves, safety glasses and all that stuff rofl Smilie But i will ask my parents to be sure i'm allowed to build this kit even i'm 22 years old Very Happy hehehehe you see? I'm 22 years old (since january) and i've bought a TLR 22! THAT'S A SIGN WUHUUUUUUU Schlag Smilie


rocketrob schrieb:Just joking my friend, enjoy - and look forward to your end result. Top Smilie


Yeah, I have some great plans for this build, i hope i can make my ideas become reality! Wink And thanks a lot dude, I'm rally lookin forward to this awesome buggy Top Smilie

Stay tuned!

All the best,
Steakjunky


Zuletzt von Steakjunky am Di Apr 26, 2011 2:14 pm bearbeitet, insgesamt 1 mal bearbeitet

_________________
Gib Veganern keine Chance! EAT MEAT!  lol!

Member of the MBG20-Group

Steakjunky
Admin
Admin

Anzahl der Beiträge : 885
Anmeldedatum : 29.09.09
Alter : 27
Ort : Wien

Nach oben Nach unten

Re: Steakjunky's TLR 22 Racebuggy buildup!

Beitrag  Steakjunky am Di Apr 26, 2011 2:13 pm


Hey guys... the wait is nearly over Wink
I just finished bag "E" and bag "D" is waiting to get done and i hope you all know what the "D" stands for rofl Smilie i only say: 12mm in diameter hrhrhrhrhr rofl Smilie
When the whole TLR22 is finished the thread will START immediately, with a lot of pictures and a little special i've made, which took the most time of the build Wink rofl Smilie
The whole car is just AWESOME and i really can't wait to drive this rig for the first time at my local track!
So, stay tuned Twisted Evil


Steakjunky

_________________
Gib Veganern keine Chance! EAT MEAT!  lol!

Member of the MBG20-Group

Steakjunky
Admin
Admin

Anzahl der Beiträge : 885
Anmeldedatum : 29.09.09
Alter : 27
Ort : Wien

Nach oben Nach unten

Start!

Beitrag  Steakjunky am Fr Apr 29, 2011 2:00 am


Here we go guys!
The thread starts NOW! Party

I will start with the box.... this is one of the nicest boxes i've ever seen.
A mat-black hull with glossy "TLR" and "22" logo on it.
When you slide the box out of the hull, you have the same her: mat-black box with a glossy buggy on it Very Happy
Open the box and you will see a lot of bags: A, B, C, D, E and F!
But who cares about the bags when you want to know how the build of this awesome buggy is!

Bag A
The complete frontend!
Steering, suspension arms, tierods, shocktower.

You start with putting the servo and the sidebraces on the chassis, this is quiet easy and then you see the steering rack. It's a slide type steering and there's nothing it can be compared with. It's not like the normal steering systems you see on other cars where everything runs on ballbearings....



Then you have to install the steering rack and the camber block on the bulkhead and then everything with the pivot plate and the 20° kick up on the chassis. Also very easy to do!

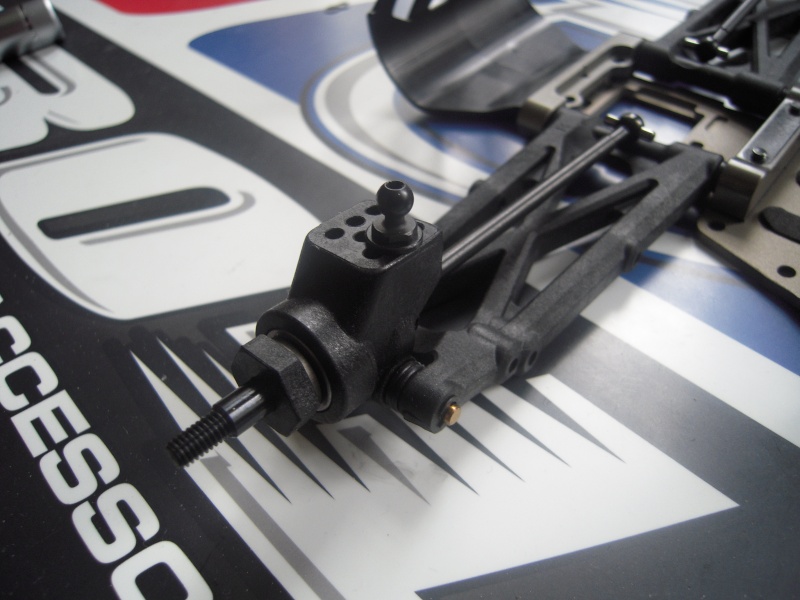

Build the spindle and carrier asembly, put it on the front suspension arms and you are ready to install it on the chassis!
Then there comes the part i hat on EVERY kit.... the TIERODS.. htey were a pain to assembly but with a pair of pliers.... i've made it! Very Happy
Install the camber and steering tierods, the front shocktower (which is very beefy) and the front bumper and your front end is finished!




Everything moves free and that's very important on every kit you are building Smile

_________________
Gib Veganern keine Chance! EAT MEAT!  lol!

Member of the MBG20-Group

Steakjunky
Admin
Admin

Anzahl der Beiträge : 885
Anmeldedatum : 29.09.09
Alter : 27
Ort : Wien

Nach oben Nach unten

Re: Steakjunky's TLR 22 Racebuggy buildup!

Beitrag  Steakjunky am Fr Apr 29, 2011 2:40 am

Bag B
Drive shafts, hubs suspension arms, camber blocks, battery tray, shock tower, tie rods.
In this bag, you find the first parts to build the rear motor and mid motor configuration!
I've chosen the rear motor version first, because i think this one will work best at my local track... so here we go!

First you have to build the cvds... nothing very special here, but a 12mm hex for the wheels. The hub carrier has a lot mounting locations for the ballstud, to adjust the rollcenter. The pins on the hub are using c-clips... i hope these are holding well, but Losi hase some threadet pins as option parts....
The hingepins on the suspension arms are moving on hardened balls which are moving in aluminium parts, so these parts will hold up nearly any abuse you can throw at them.





The battery tray (or hold down) and the camber black are installed with some screws. I have to mention, that the plastic that Losi is using is very very hard and strong, so i think you can keep spareparts to a minimum. Then mount the shocktower and the tierods and bag B is finished!





Here you can see the whole chassis form the bottom. Everything is flat, very screw is countersunk.... i think, this is the perfect buggy Very Happy

_________________
Gib Veganern keine Chance! EAT MEAT!  lol!

Member of the MBG20-Group

Steakjunky
Admin
Admin

Anzahl der Beiträge : 885
Anmeldedatum : 29.09.09
Alter : 27
Ort : Wien

Nach oben Nach unten

Re: Steakjunky's TLR 22 Racebuggy buildup!

Beitrag  Steakjunky am Fr Apr 29, 2011 3:59 am

This is the little special i've made, enjoy it. I will post the rest of the build tomorrow Smile


grets
Steakjunky

_________________
Gib Veganern keine Chance! EAT MEAT!  lol!

Member of the MBG20-Group

Steakjunky
Admin
Admin

Anzahl der Beiträge : 885
Anmeldedatum : 29.09.09
Alter : 27
Ort : Wien

Nach oben Nach unten

Re: Steakjunky's TLR 22 Racebuggy buildup!

Beitrag  Ghost 22 am Fr Apr 29, 2011 6:52 am

LOVE IT!!!

Awesome dude ... Very Happy
Very nice stop-motion-video


Cheers Ghost 22

_________________
Cheers Max


Chevy Stepside 1980 US Army
Ford F100 Hotrod
Freightliner M2 112 *in progress*
Scania R-Series Holztransporter 6x4
Scania T-142 Kipper 4x4 mit Tieflader
Ural 375D 6x6 Military
Tatra 815 6x6x4 Trial Truck
Mercedes SK 4x4 Trial Truck
...

Ghost 22
Admin
Admin

Anzahl der Beiträge : 1366
Anmeldedatum : 26.09.09
Alter : 25
Ort : Vienna

http://www.morethanbike.at

Nach oben Nach unten

Re: Steakjunky's TLR 22 Racebuggy buildup!

Beitrag  Steakjunky am Di Mai 03, 2011 1:12 am

Bag C
Transimssion,....


So here we go, the transmission.
In this bag you again get vereything to build the rear-, and mid motor transmission. So all the gars and the 2 different cases are includet!

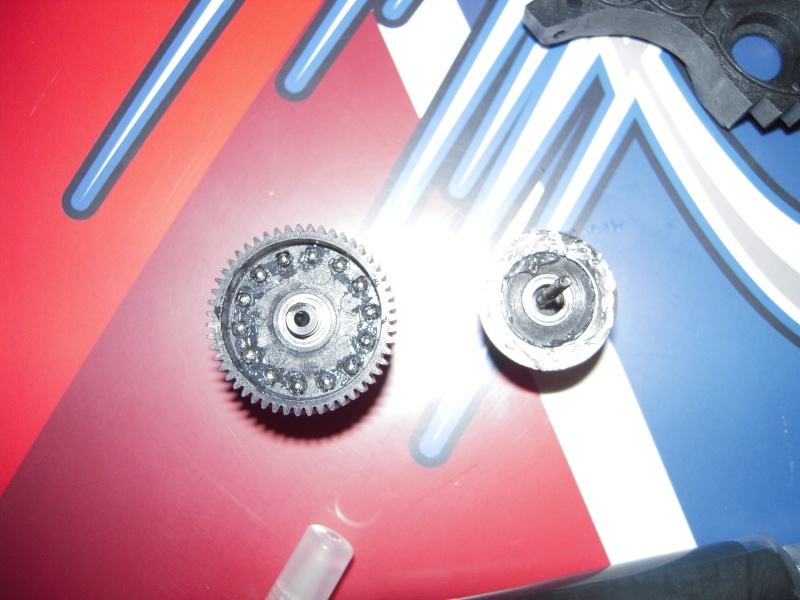

You start with the ball differential... nothing special here.. 14 diff-balls, 2 diff-rings, ball bearings, thrust bearing and the two steel diffhalves.
Screw all this together and you'll a very smooth running diff!



Then take the transimssion case halves, mount the motor plate on one side, put the bearings and the gears in it, screw the halves together, attach the spur gear and the slipper and finally the gear cover (which has a little hole on the side to adjust the slipper. the hole can be covered) and you will get this:



Mount it on the chassis with the wing mounts and you've finished bag C!




_________________
Gib Veganern keine Chance! EAT MEAT!  lol!

Member of the MBG20-Group

Steakjunky
Admin
Admin

Anzahl der Beiträge : 885
Anmeldedatum : 29.09.09
Alter : 27
Ort : Wien

Nach oben Nach unten

Re: Steakjunky's TLR 22 Racebuggy buildup!

Beitrag  Steakjunky am Di Mai 03, 2011 1:24 am

Bag D.... i hate building dampers...


but these were AWESOME Very Happy

12mm big bores, super smooth... do i have to say more? These were the best ones i've ever built!

So here we go!

The aluminium bodys were perfectly machined and hardcoated. Insert the o-rings and spacers in the bottom and screw the bottom-cap on (made of aluminium).
Put the #55 pistons und the shock shafts and clip the e-clips into place. Push the shafts through the bottom of the shock, fill them, bleed them, adjust preload and you're ready to go!
Tip: I've used Team Associated Green Slime on the o-rings, for a better seal, to prevent leaking.
Ive seen a TLR-Tip where the teamdrivers are cutting the bladders so they only have a o-ring in the top-cap, but i haven't done this mod. I want to try the original setup first!


Install the shock-springs and all four shocks on the chassis and you are finished with bag D!

_________________
Gib Veganern keine Chance! EAT MEAT!  lol!

Member of the MBG20-Group

Steakjunky
Admin
Admin

Anzahl der Beiträge : 885
Anmeldedatum : 29.09.09
Alter : 27
Ort : Wien

Nach oben Nach unten

Re: Steakjunky's TLR 22 Racebuggy buildup!

Beitrag  Steakjunky am Di Mai 03, 2011 1:45 am

Bag E
Battery brace, whels, bodyclips, antenna.

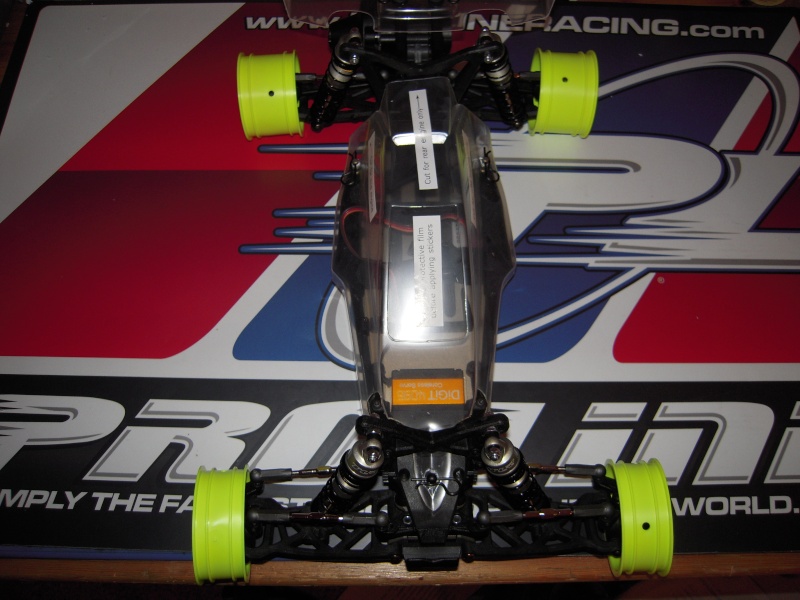

Really nothing special here, just mount everything und youve finished the chassis Very Happy





There is also a bag F, with different pistons, different kuck-up plate, shims and different anty-squat plates for the rear end, so you have got nearly everything to tune your TLR22

Final conclusion for now:
So, the build of the TLR 22 was awesome. You get everything needed to build the rear- and mid motor setup. The buggy looks awesome, the quality of the parts is perfekt, everything fitted perfectly,all the plastic parts are beefy so the should hold up very well and so the list for spare parts will be very short. The overall finish and quality of all the aluminium parts is perfect. What i really liked about the kit is, that you don't get any tires, but TWO complete sets of wheels, so you can choose the tires for your own, or in my case, the tires i have to use on my track because of the ÖFMAV Kotz Smilie rules.
I will also test the mid-motor configuration, but first i want to see how it drives with the rear-motor setup. I will also post some complete setups.



I will paint the body and install the esc and motor very soon.

So stay tuned for the first rollout Wink

grets
Steakjunky

_________________
Gib Veganern keine Chance! EAT MEAT!  lol!

Member of the MBG20-Group

Steakjunky
Admin
Admin

Anzahl der Beiträge : 885
Anmeldedatum : 29.09.09
Alter : 27
Ort : Wien

Nach oben Nach unten

Re: Steakjunky's TLR 22 Racebuggy buildup!

Beitrag  Ghost 22 am Di Mai 03, 2011 6:53 am

One word ... wonderful Rock Smilie

Wenn du den ersten Rollout machst, muss ich umbedingt dabei sein Very Happy


Cheers
Ghost 22

_________________
Cheers Max


Chevy Stepside 1980 US Army
Ford F100 Hotrod
Freightliner M2 112 *in progress*
Scania R-Series Holztransporter 6x4
Scania T-142 Kipper 4x4 mit Tieflader
Ural 375D 6x6 Military
Tatra 815 6x6x4 Trial Truck
Mercedes SK 4x4 Trial Truck
...

Ghost 22
Admin
Admin

Anzahl der Beiträge : 1366
Anmeldedatum : 26.09.09
Alter : 25
Ort : Vienna

http://www.morethanbike.at

Nach oben Nach unten

Re: Steakjunky's TLR 22 Racebuggy buildup!

Beitrag  Steakjunky am Di Mai 03, 2011 7:29 am

Perfekt, werde dir auf jedenfall bescheidgeben, wenns so weit ist Wink Muss halt noch Motor und Regler einbaun und den Deckel lackiern Wink
Dann muss ich endlich meinen SMRC-Schlüssel holn, weil ich noch immer keine Zeit ghabt hab, bzw bis jetz noch zu keinem Clubabend gekommen bin....

lg

_________________
Gib Veganern keine Chance! EAT MEAT!  lol!

Member of the MBG20-Group

Steakjunky
Admin
Admin

Anzahl der Beiträge : 885
Anmeldedatum : 29.09.09
Alter : 27
Ort : Wien

Nach oben Nach unten

Re: Steakjunky's TLR 22 Racebuggy buildup!

Beitrag  Steakjunky am Mi Aug 24, 2011 11:47 pm

SOOOOOOOOOOOOOOOO auch hier geht es endlich mal wieder weiter Party

Hatte letzte Woche die ERSTE ausfahrt mit meinem TLR22 und ich muss sagen, ich bin echt begeistert.
Mit dem Baukasten-Setup liegt er schon recht gut, wobei man beim Gasfinger etwas ruhig sein muss, sonst hat man etwas übersteuern. Habe die Dämpferposition hinten auf oben innen und unten außen geändert, also auf das schrägste. So liegt er am heck weitaus ruhiger und lässt sich noch besser fahren. Angetreten bin ich gegen zwei Asso B4 (Manu und Toni) und war doch, selbst in den Kurven deutlich flotter unterwegs, sofern ich fehlerfrei gefahren bin Top Smilie Die Lenkung war von Anfang an eigentlich einwandfrei, habe nur etwas an der Spur und am Sturz gespielt das sie weniger aggressiv war rofl Smilie
Diverse Ein- und Überschläge hat der Buggy ohne Bruch oder sonstwas, mit bravur weggesteckt. Mir kommt vor, als ob das Teil ein Panzer wäre rofl Smilie rofl Smilie rofl Smilie
Ich hoffe ich komm demnächst wieder auf dei Strecke, um das Setup weiter zu verbessern.
Geplant sind:
Anderes Öl in den Heckdämpfern, vll 25er statt dem 27,5er Ol
Andere Sturzstangenposition am Heck

Ich denke damit sollt das dann ganz gut hinhaun Wink

Desweiteren habe ich schon 2, für mich äußerst sinnvolle Tuningteile verbaut:
Schwingenstifte mit Gewinde statt den C-Klipsen am Heck (für die Front sollten sie noch kommen)
Alu 6-Kant Mitnehmer am heck mit 0 Offset (auch hier gibts in 0,5mm Abständen verschieden Offsets, mal schaun was ich vll noch ordern werde.)

Das wars soweit und wie ihr merkt, bin ich von dem Buggy äußerst angetan und es steckt einiges an Potential in ihm Wink

Lg Steakjunky
